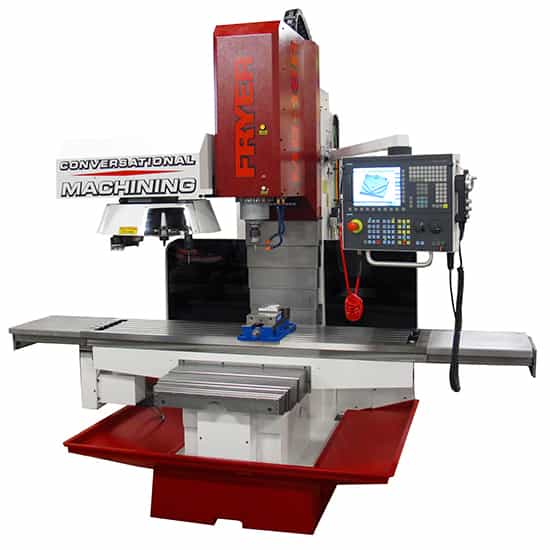

Fryer MB-16R Specifications

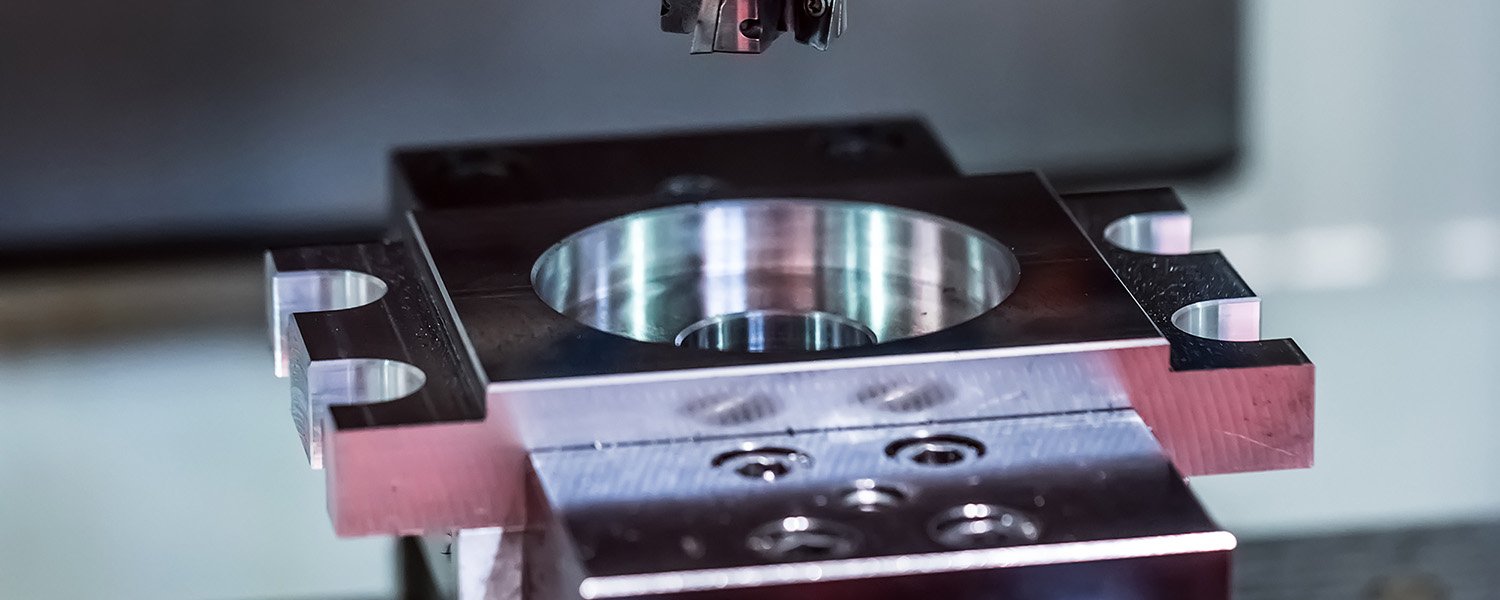

Salco offers custom milling services using our Fryer MB-16R.

Machine Capacity

  • X Travel – 60″
  • Y Travel – 25″
  • Z Travel – 24″
  • Table Load – 2950 lbs
  • Ballscrew Size – 1.57″
  • Table Size – 18″ x 70″
  • T-Slots (No. / Width) – 5 / 0.630″
  • Table Top to Floor – 36″

Spindle

  • Motor (Peak) – 12 HP
  • Max Spindle Torque – 40 ft/lbs
  • Spindle Speeds – 60 – 80000 RPM
  • Tool Type / Taper – CAT 40 (BT-40 Optional)
  • Spindle Nose to Table (Max – Min) – 28″ – 4″
  • Spindle Center to Column – 25″

ATC

  • Tool Storage Capacity – 12 (20 optional)
  • Tool Change Time – 7 seconds
  • Tool Selection – Bi-Directional
  • Max Adjacent Tool Diameter – 5.5″
  • Max Tool Weight – 15.4 lbs
  • Max Tool Length – 11.8″

Performance

  • Positioning Accuracy – +/- 0.0002″
  • Positioning Repeatability – +/- 0.001″
  • Rapid Traverse – 400 IPM
  • Cutting Feed Rate – 0.001 – 300 IPM
  • Axis Thrust (Peak) – 4400 lbs
